Network cable fault-finding on site
A close look at cable diagnostics, using a handheld tester to examine the connections in a data cable.

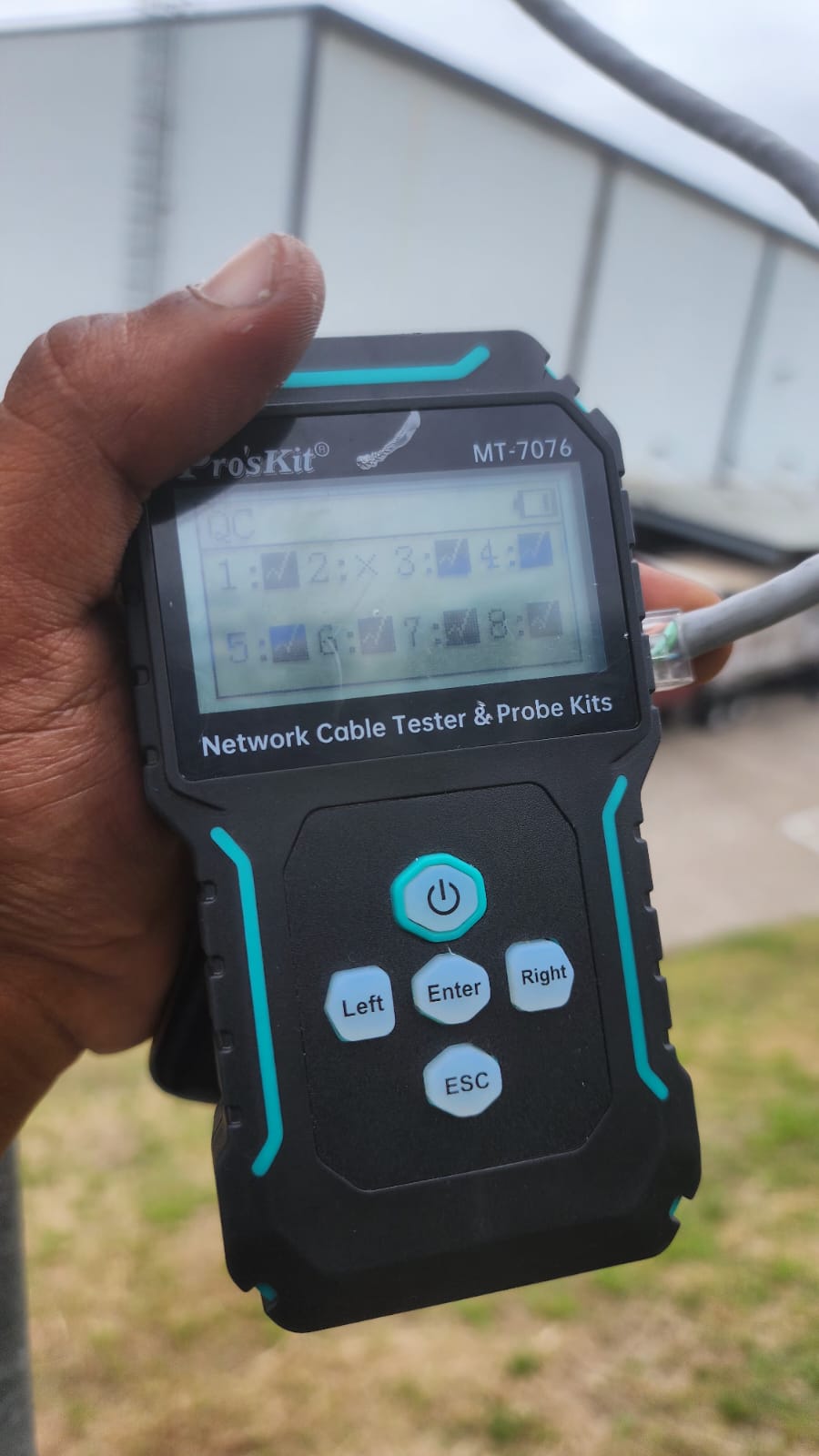

Diagnostic-stage photograph: a handheld cable tester connected to the data cable.
The work shown
This photograph captures a network cable check using a handheld Pro’sKit tester. The cable is connected to the instrument while its wire-map display is reviewed. It documents a diagnostic step, rather than a completed network handover.
Why cable checks matter
An unreliable connection can involve the cable, its connectors, patching or connected equipment. Checking the cable connections helps narrow down the source of a problem before repairs are agreed. A cable’s wire map is one part of the assessment; the connection still needs to be considered in the context of the wider network.
A similar issue at your property
When enquiring, describe what disconnects, when the issue happens and which areas are affected. Include your suburb and any recent changes to the network. Zapture can discuss fault-finding and structured cabling work for your premises.
